Name: HPE 0x2x16 G3 KVM Console Switch
SKU: AF652A
Price: 9069.10 RON
Availability: OutOfStock

Lifecycle

Obsolete Date 31-03-2025
End of support date 31-12-2030

Specifications

Power 20W
Input voltage 100 to 240V AC
CAT5 cable Included
Tiering support Yes
Number of servers, maximum 256
Number of simultaneous users, maximum 2
Number of server ports 16
Weight 4.6 lb
Warranty 3/0/0
Product dimensions (metric) 43.8 x 16.51 x 4.36 cm
Weight 2.04 kg
Product dimensions (imperial) 17 x 6.5 x 1.72 in

Overview

Looking for a simple and intuitive solution that allows you to access and manage servers in your data center? HPE Advanced Analog KVM console rack switches allow you to view and manage up to 256 rackmount servers through a single user interface. They utilize a local On-Screen Display (OSD) interface, accessed through a rack console such as the HPE LCD8500, that provides intuitive menus for accessing each attached server or serial managed device. HPE Advanced Analog KVM console switches support an optional USB Remote Access Key that allow you to upgrade to KVM-over-IP functionality, providing remote access and management via the On-Board Web Interface (OBWI). Standard rack mounting of the console switch will share 1U (1.75-inch) of front panel rack space with the rack console. However, each model can also be mounted in a "zero U" profile by mounting in the side rails of the rack.

Features

You can use HPE rack and power products with non-HPE IT equipment; however, when used with Hewlett Packard Enterprise servers, you are able to take advantage of various server and IP-based tools used for maintaining and managing all the equipment in the rack.

We have an Advanced Analog KVM switch that's right for your environment

On-Board Web Interface (OBWI) – built in web server providing remote management of the KVM.

Don't spend additional budget on extended warranties for your rack and power infrastructure. HPE Pointnext operational services purchased for servers extend to our rack and power infrastructure products such as racks, power distribution units, uninterruptible power systems, and KVM console switches.

View and Manage up to 256 Servers through a Single User Interface

HPE Advanced Analog KVM switches are designed to be used with HPE servers, storage, and networking products.

8-Port and 16-Port models with multiple installation and server connection options

Features support for HPE Location Discovery Services (LDS) and Power Discovery Services (PDS) support when connected to an HPE Intelligent Power Distribution Unit (iPDU) and the HPE LCD8500 1U Rackmount Console Kit (HPE Location Discovery Services LCD8500 Kit required).

For protection against unauthorized users, HPE Advanced Analog KVM switches provide a password option.

Manageability

HPE Advanced Analog KVM switches support a variety of server connections with interface adapters for PS/2, USB, and VT 100 (serial console support), as well as HPE BladeSystems support via the front diagnostics connector.

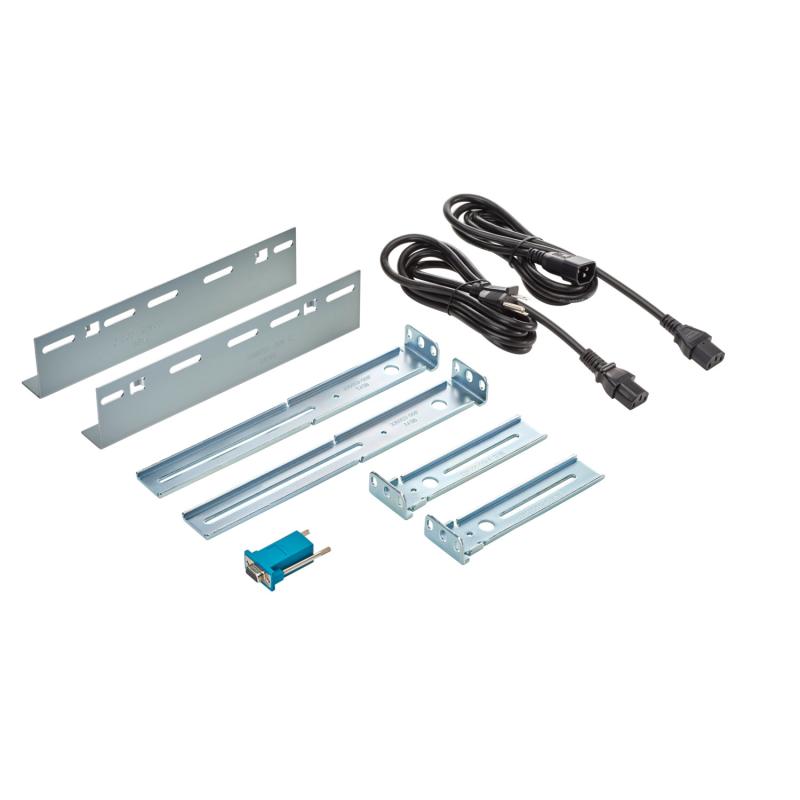

HPE Advanced Analog KVM switches include mounting hardware that support “Zero U” installations on both the side and rear of standard IT racks, saving valuable space within your rack.

HPE Advanced Analog KVM switches utilize a local On-Screen Display (OSD) that provides access to system-related information such as selected server name, status, power-up test data and configuration menus.

HPE Advanced Analog KVM switches support an optional USB Remote Access Key that allow you to upgrade to KVM-over-IP functionality, providing remote access and management via the On-Board Web Interface (OBWI).

HPE Advanced Analog KVM switches include Programmable Scanning, a utility that allow you to evaluate system performance by sequentially scanning any or all servers managed through the console switch.

Compatible products

Cod produs: AF652A Categorie: Switch-uri KVM
