HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit

Lifecycle

• Obsolete Date 31-12-2099
• End of support date 31-12-2104

Specifications

• Stacking capabilities 4H height
• Throughput 131 Mpps
• Warranty Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.
• Input voltage 100 – 240 VAC
• Switching capacity 176 Gbps
• Power consumption Maximum: 100-127V: 790W 200-220V: 760W Idle: 100-127V: 60W 200-220V: 100W
• PoE capability Total 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE)
• Memory and processor Single Core ARMv7 Cortex-A9 @800MHz
• Product dimensions (metric) 40.28 x 44.25 x 4.4 cm
• Product dimensions (imperial) 15.86 x 17.42 x 1.73 in
• Management features Aruba Instant On Cloud; Web browser; SNMP Manager
• Operating temperature 0-40°C, 0-10,000 ft
• Ports 48 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports
• Weight 10.8 lb
• Weight 4.9 kg

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

What’s new

• Limited Lifetime Warranty.
• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
• The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
• Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
• Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.

Features

Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.

The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.

The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.

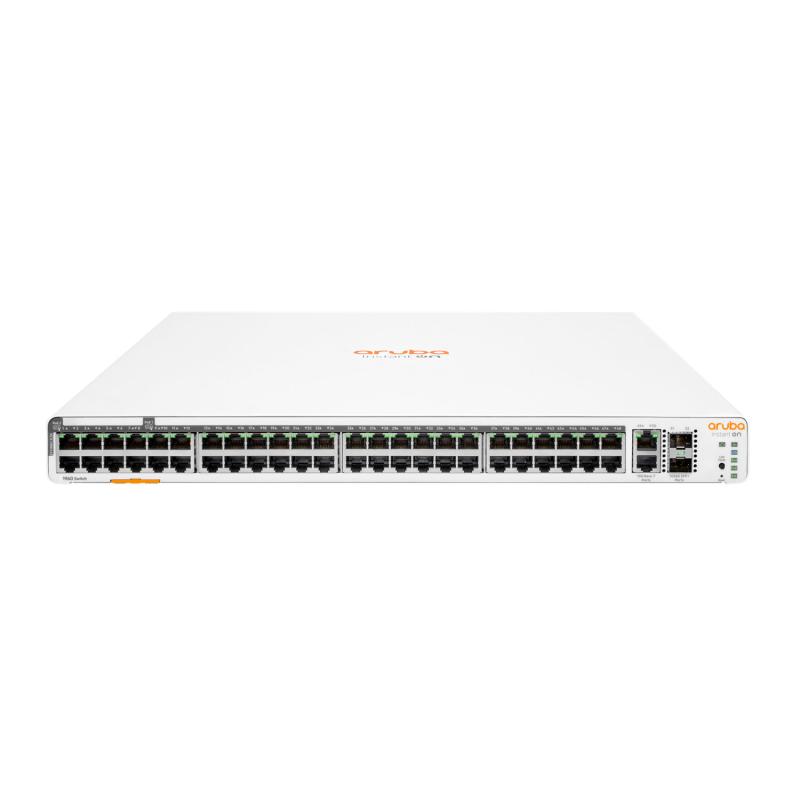

Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.

The 12-port, 24-port, and 48-port PoE models come with a power budget of 480W, 370W and 600W respectively to support the latest PoE-powered IoT devices.

The Aruba Instant On 1960 Switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.

Ease of Use with Cloud-Managed Stacking

The Aruba Instant On 1960 Switch series offers a complete portfolio for increased small business flexibility. It consists of six models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, a 12-port multi-rate switch, and a 12-port 10-Gigabit aggregation switch.

Simplify Network Deployment and Management for Small Organizations

Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.

Two connections of 10GBASE-T deliver 10GbE over copper Category 5/6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.

Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.

High-level Gigabit with 10GbE Networking for Advanced Small Businesses

Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.

Robust Security to Protect Your Network

The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.

Compatible products

• HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver
• HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver
• HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver
• HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver
• HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver
• HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
• HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
• ARUBA ION 1G SFP LC SX 500M MMF XCVR
• ARUBA ION 1G SFP RJ45 T 100M CAT5E XCVR
• ARUBA ION 10G SFP+ LC SR 300M MMF XCVR
• Aruba IOn 10G SFP+ to SFP+ 1m DAC Cable
• ARUBA ION 10G SFP+ TO SFP+ 3M DAC CABLE
