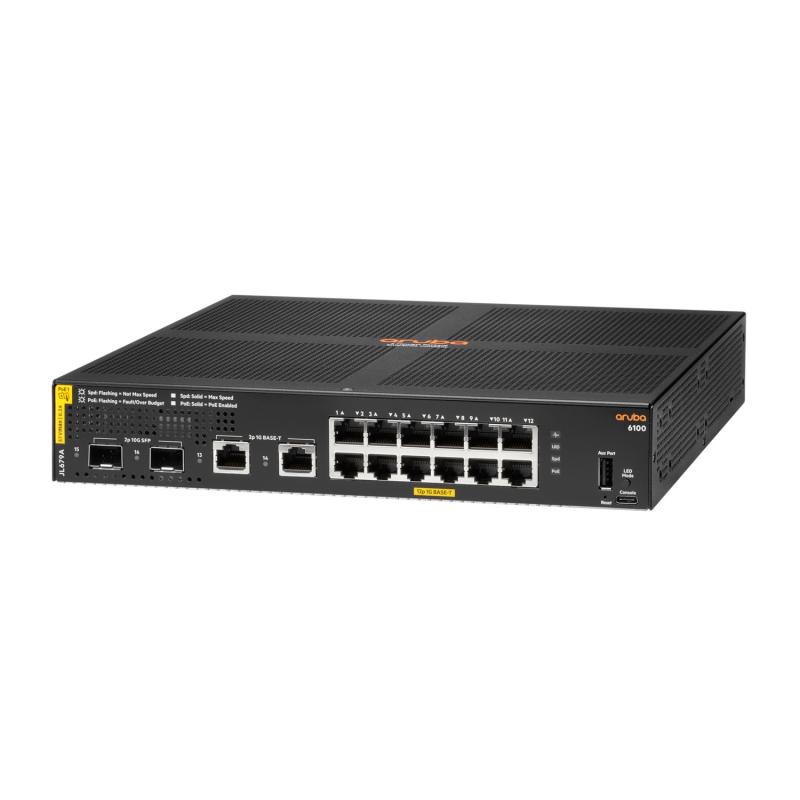

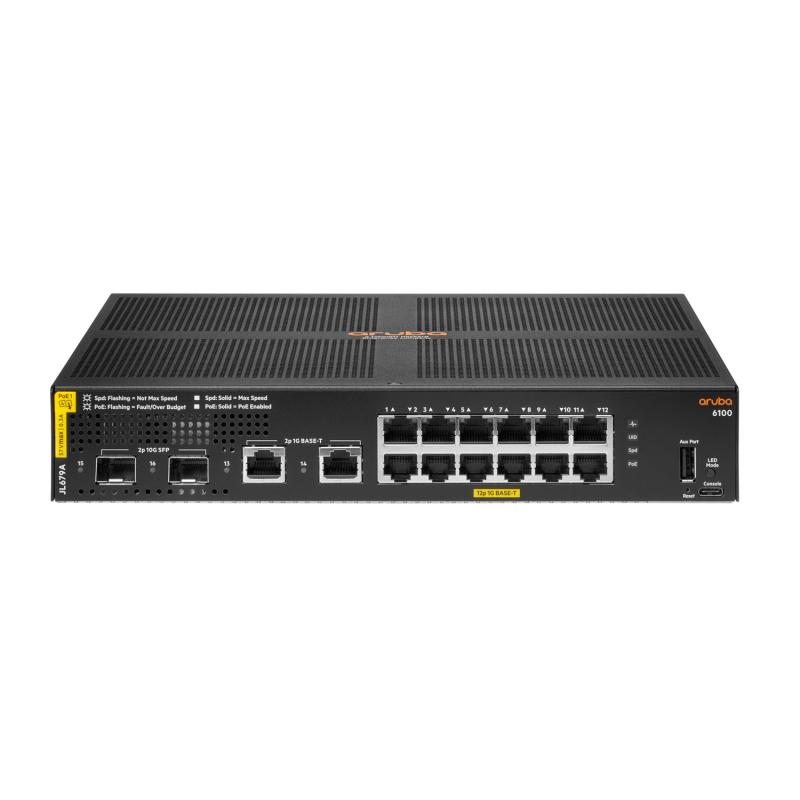

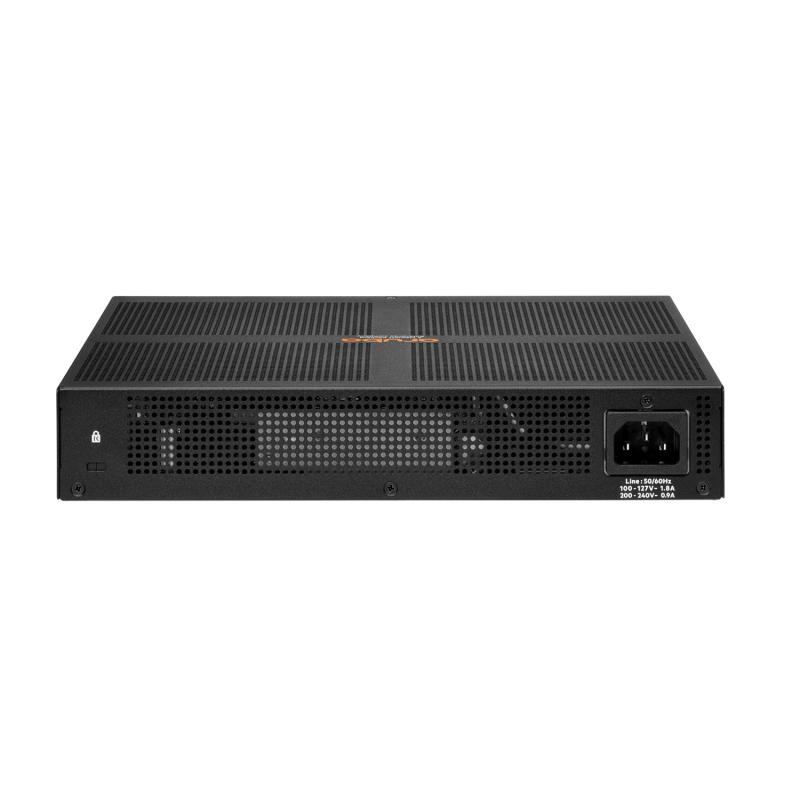

HPE Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W

Availability:

7 în stoc
Adauga la favorite
Compara

5,739.18lei

7 în stoc

Compara

Lifecycle

  • Obsolete Date 31-12-2099
  • End of support date 31-12-2104

Specifications

  • Weight 2.8 kg
  • Throughput 45.1 Mpps
  • PoE capability 139W Class 4 PoE/PoE+
  • Input voltage 100-127 VAC / 200-240 VAC
  • Memory and processor Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
  • Warranty Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase
  • Power consumption Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
  • Latency 1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec
  • Ports 12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports
  • Switching capacity 68 Gbps
  • Weight 6.13 lbs
  • Product dimensions (metric) 4.4 x 25.4 x 25.5 cm
  • Product dimensions (imperial) 1.73 x 10.0 x 10.4 in

Quickspecs

Overview

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.

What’s new

  • Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
  • Software defined ready with REST APIs.
  • Silent deployment with compact and fanless 12 port PoE model.
  • Flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
  • Layer 2 feature set with static routing and switch software embedded with no subscription required to enable.
  • Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.

Features

Entry Level Aruba CX Access Layer Switches
Simplified Configuration and Management

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.

The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.

Performance and Power

Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.

Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.

Simplifies ownership with no switch software licensing or subscriptions required.

Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.

Using Aruba AOS-CX operating system across HPE Aruba Networking CX switching platforms and deployment domains provides a simpler, more consistent operator experience.

Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.

The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.

Software-defined ready with REST APIs for fine-grained programmability of network tasks.
