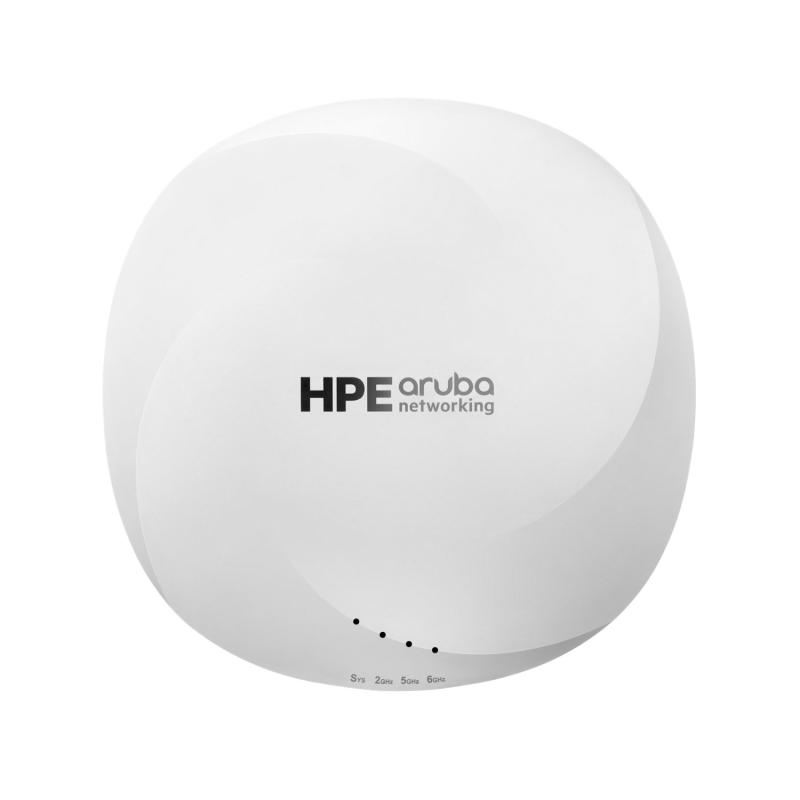

HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2×2 Wi-Fi

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Radio coverage Indoor, dual-radio/tri-band 2.4 GHz, 5 GHz and 6 GHz (dual concurrent) 802.11ax 2×2 MIMO
• Wi-Fi antenna AP-615: Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 2.8dBi in 2.4 GHz, 4.5dBi in 5 GHz and 4.5dBi in 6 GHz.
• Ports ##BLANKS##
• Mounting ##BLANKS##
• Weight 1.59 lb
• Weight 0.72 kg
• Product dimensions (metric) 5.1 x 20.1 x 18.3 x cm
• Certifications UL2043 plenum rating; Bluetooth SIG; Ethernet Alliance (PoE, PD device, Class 4); Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac, Wi-Fi CERTIFIED 6E (ax, 6 GHz), WPA, WPA2 and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, W-Fi Agile Multiband Passpoint (release 2), Wi-Fi CERTIFIED Location™
• Regulatory ##BLANKS##
• Product dimensions (imperial) 2 x 7.9 x 7.2 in
• Connectivity, standard ##BLANKS##
• Heat dissipation ##BLANKS##
• Warranty Limited lifetime warranty. Visit Product Warranty for warranty and support information included with your product purchase.
• Input voltage ##BLANKS##
• Power consumption ##BLANKS##

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs

Overview

HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and IoT devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-AP deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.

What’s new

• Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements.
• Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1].
• Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications.
• Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments.
• Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate.
• Offered as optional eco-friendly 10-pack.

Features

HPE Aruba Networking 610 Series Campus Access Points equip enterprises with 6 GHz coverage providing up to 1200 MHz additional capacity at an attractive price point.

Cost-effective and Compact 6 GHz Coverage

HPE Aruba Networking 610 Series Campus Access Points with dual radios deliver up to a maximum combined 3.6 Gbps data rate for higher throughput and faster speeds.

The Designed for Low Power Indoor environments (LPI).

With up to seven 160 MHz channels, the APs increase performance for low-latency, bandwidth-hungry applications.

More Capacity and Wider Channels with Wi-Fi 6E

HPE Aruba Networking 610 Series Campus Access Points include built-in GPS receivers and fine time measurement to automatically and accurately locate themselves.

The AP supports Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs.

Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and Target Wait Time for better multi-user performance and improved efficiency.

HPE Aruba Networking 610 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.

Indoor location-aware APs

It offers low power (802.3af Class 3) and compact form factor for ease of deployment.

It extends Capabilities of Wi-Fi 6 (802.11ax) APs

Unique HPE Aruba Networking capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring to customize user experience and energy use.

##BLANKS##

##BLANKS##

##BLANKS##

##BLANKS##

##BLANKS##

Software-programable radios can be configured to cover any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz.

##BLANKS##

##BLANKS##

Client and RF optimization to match clients with the best available access point and reduce coverage gaps.

Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.

Media

Aruba 1-2-3: What is the future of Wi-Fi?

After nearly 20 years of being limited to the 2.4 and 5 GHz bands, Wi-Fi 6E introduces the 6 GHz band which gives us access to much more bandwidth to support a wide range of applications and devices.

Compatible products

• Aruba 3Y FC NBD Exch AP-615 Campus SVC

Documents

• Wi-Fi 6 vs Wi-Fi 6E Infographic
• Interconnected retail on a massive scale – The Home Depot
• HPE Aruba Networking 610 Series Campus Access Points
• Interconnected retail on a massive scale – The Home Depot

[1] By default (with IPM disabled) the AP-615 will disable the USB port (only) when on Class 3 PoE. The IPM feature can be used to avoid this restriction.
