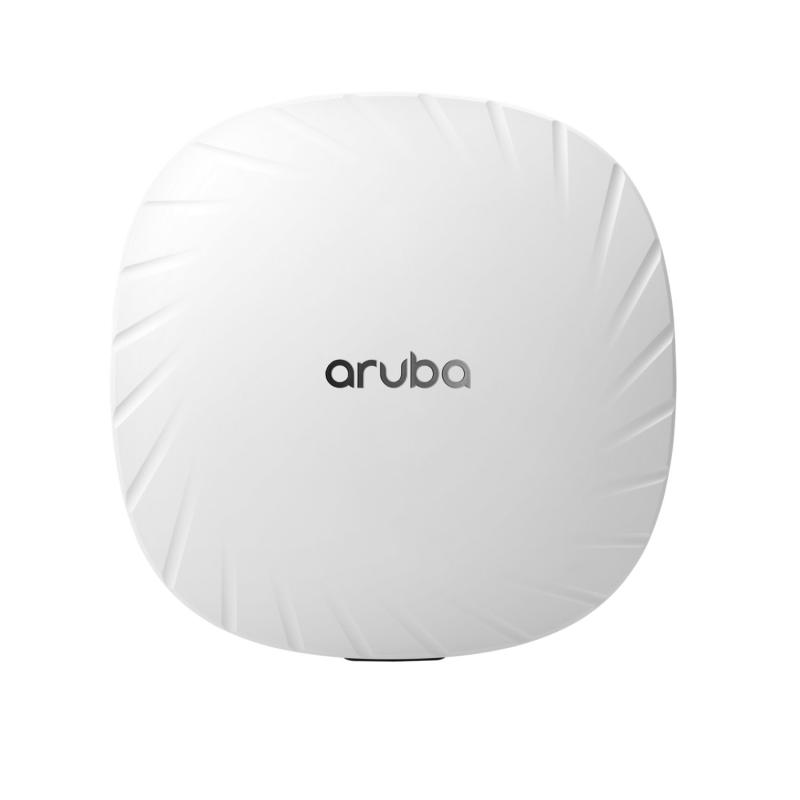

Aruba AP-515 (RW) Unified AP

Lifecycle

• Obsolete Date 01-01-2100

Specifications

• Weight 28.5 oz

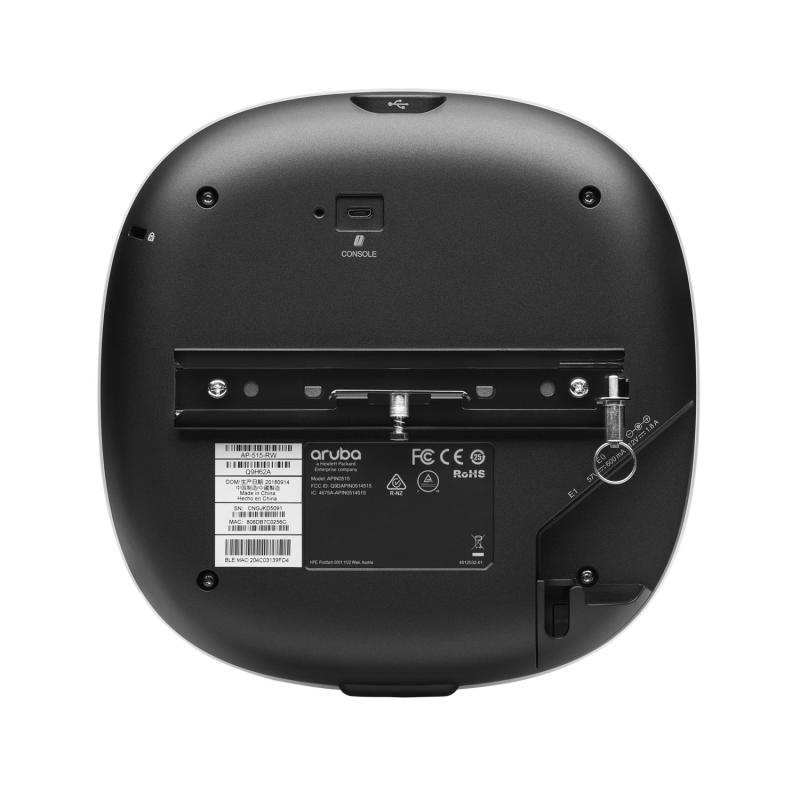

• Mounting Pre-installed mounting bracket, for use with optional mounting kit
• Ports (1) HPE SmartRate RJ-45 port (maximum negotiated speed 2.5Gbps), (1) 10/100/1000BASE-T Ethernet
• Warranty Aruba limited lifetime hardware warranty. See https://www.arubanetworks.com/support-services/product-warranties/
• Input voltage PoE/PoE+ or direct DC power (via optional power supply)
• Power consumption POE powered (802.3at): 19W (802.3at PoE), 13.5W (802.3af PoE), 17 W (DC power supply)
• Weight 810 g
• Wi-Fi antenna Four integrated dual-band downtilt omni-directional antennas for 4×4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz.
• Radio coverage Dual-radio IEEE 802.11ax access point with OFDMA and Multi-User MIMO (MU-MIMO). Supports up to 4.8 Gbps in the 5GHz band (with 4SS/HE160 clients) and up to 575 Mbps in the 2.4GHz band (with 2SS/ HE40 clients).
• Product dimensions (imperial) 1.8 x 7.9 x 7.9 in
• Product dimensions (metric) 46 x 200 x 200 mm

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs

Overview

With an increasing number of mobile and Internet of Things (IOT) devices reliant on wireless access, networks must accommodate a diverse mixture of device types, applications and services. The Aruba 510 Series Campus Access Points with 802.11ax technology efficiently deliver high-performance access to multiple clients and traffic types simultaneously in environments where density is an issue, increasing data rates for both individual devices and the overall system. The 510 Series supports maximum data rates of 4.8 Gbps in the 5 GHz band and 575 Mbps in the 2.4 GHz band, ideal for high-density environments such as schools, retail branches, hotels, and enterprise offices. In addition to 802.11ax standard capabilities, the 510 Series supports unique features like Aruba ClientMatch radio management and additional radios for location services and IOT applications, delivering an unsurpassed user experience in today’s all-wireless digital work environment.

What’s new

• The 510 series access points provide high performance Dual Radio 802.11ax AP with OFDMA and Multi-User MIMO (MU-MIMO).
• Supports all mandatory and several optional 802.11ax features.
• This series features maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps).
• Includes Bluetooth Low Energy (BLE) and Zigbee radios for location and IoT use-cases.

Features

Improved Efficiency

Aruba 510 Series Campus Access Points efficiently and simultaneously serve multiple clients, increasing data rates for both individual devices and as an overall system.

Multi-user transmission with downlink and uplink OFDMA increases user data rates and reduces latency, especially for large numbers of devices with short frames or low data-rate requirements, such as voice and IoT devices.

Multi-user capability with downlink multi-user MIMO improves network capacity by allowing multiple devices to transmit simultaneously.

As higher-performance 802.11ax access points drive more power consumption, the Aruba NetInsight GreenAP feature allows the 510 series access points to draw less power when it’s not being used, such as evenings when the buildings are empty.

The 510 series supports an integrated Bluetooth Low-Energy (BLE) and Zigbee radio, as well as a USB port for maximum flexibility, providing secure and reliable connectivity for IOT devices and for implementing location services.

802.11ax technology provides unique benefits for IoT devices ranging from dedicated channels in OFDMA that allows for simultaneous transmission of IoT connections with low latency, to power saving options with Target Wake Time (TWT) to saves battery life.

The Aruba 510 Series Campus Access Points helps make your network ready for the Internet of Things (IoT).

IoT-ready

The access points run on ArubaOS 8, delivering always-on networking via features like LiveUpgrade, Controller Clustering, and seamless fail-over.

The 510 Series uses ArubaOS 8 AirMatch (machine learning technology) to automatically optimize the performance of a wireless network by tuning the radio frequencies (RF) of the access points.

Performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are maximized. This means increased network performance and a boost in network capacity.

Aruba ClientMatch technology in the Aruba 510 Series Campus Access Point will automatically attempt to group 802.11ax capable devices onto available AP radios with equivalent capabilities.

High Performance

Compatible products

• ARUBA 1Y FC NBD EXCH AP-515 SVC
• ARUBA 3Y FC NBD EXCH AP-515 SVC
• ARUBA 3Y FC NBD EXCH HW AP-515 SVC
• ARUBA 5Y FC NBD EXCH HW AP-515 SVC
• HPE Aruba Networking AP-MNT-MP10-D Campus AP 10-Pack Solid Surface Mount Bracket Kit
• HPE Aruba Networking AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit
• HPE Aruba Networking AP-MNT-B Campus AP Type B Suspended Ceiling Rail Flat 15/16 Mount Bracket Kit
• HPE Aruba Networking AP-MNT-C Campus AP Type C Suspended Ceiling Rail 9/16 Profile Mnt Bracket Kit
• HPE Aruba Networking AP-MNT-D Campus AP Type D Solid Surface Mount Bracket Kit
• HPE Aruba Networking AP-MNT-E Campus AP Type E Wall-Box Mount Bracket Kit
• HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm Connector
• HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector
• HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector
• AP-MOD-SERU CONSOLE ADAPTER MODULE
